Industrial non-destructive testing

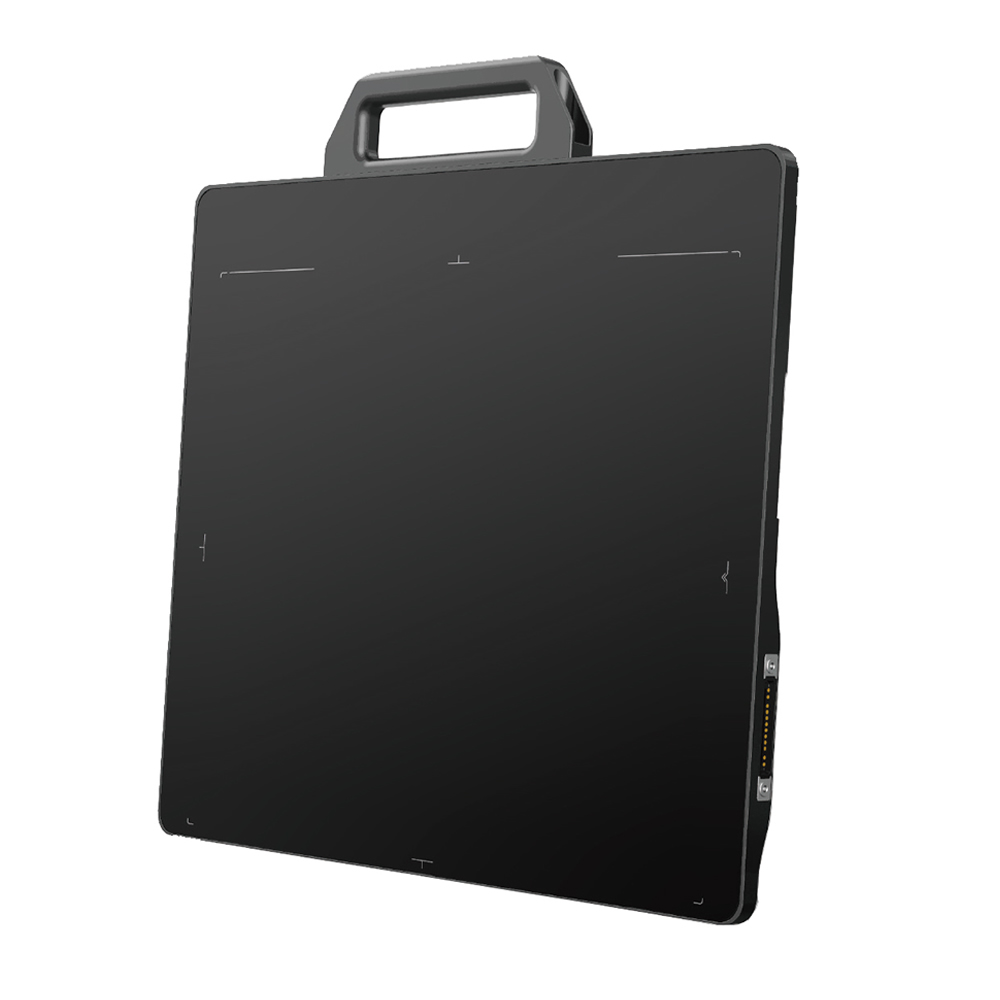

DScan1012 (single board) wireless portable flat panel detector

The Dscan1012MA is a 10x12-inch wireless portable amorphous silicon flat panel detector. The detector is designed for industrial ruggedness, making it highly radiation-resistant, widely adaptable to the environment, and highly reliable. Data and signal communication can be achieved by wire or wireless. The SDK software development kit provided by Ge supports the Windows operating system, which is convenient for you to configure, correct, acquire images and observe images for the detector. Due to its excellent image quality and reliability, the Dscan1012MA is the best choice for mobile NDT applications in the field.

Functional characteristics

    • Design using radiation resistant amorphous silicon sensors

    • 25x30 cm imaging area

    • 125 um pixel size, 16 bit ADC180 second exposure window, sturdy and durable design, capable of withstanding 1 meter drop

    • Wired and 5G wireless data interfaces

    • <7mm narrow edge

    • 2.5 hour battery life

    • 10X12 inch industrial non-destructive testing and security inspection system wireless portable flat panel detector: weld inspection, pipeline inspection, hazardous material inspection such as explosives, and other X-ray applications


    Overall dimensions: Unit: millimeters


Technical Parameter

Detector Type

amorphous

Scintillator type

iodinate/DRZ-PIus/DRZ-STD

pixel size(um)

125

pixel matrix

2000 x2400

Effective imaging area(mm2)

250 x 300

spatial resolution(lp/mm)

4

AD conversion bits(bit)

16

rate(fps)

1

Maximum exposure window(s)

180

data interface

wired:GigE(>100 Mbps) wireless: 802.11 a/g/n(100mbps)

MODE

Soft trigger

X-ray energy range

40kV~370kV

radiation tolerance(Gy)

2000

protection grade

IP54

size(mm)

340 x291 x18

In car charging

have

weight(kg)

2.3

consumption(W)

17

operate temperature(°)

-10~40

storage temperature(°C)

-20~55

Operating humidity(% RH)(No condensation)

20-90

Storage Humidity(% RH)(No condensation)

10-90
