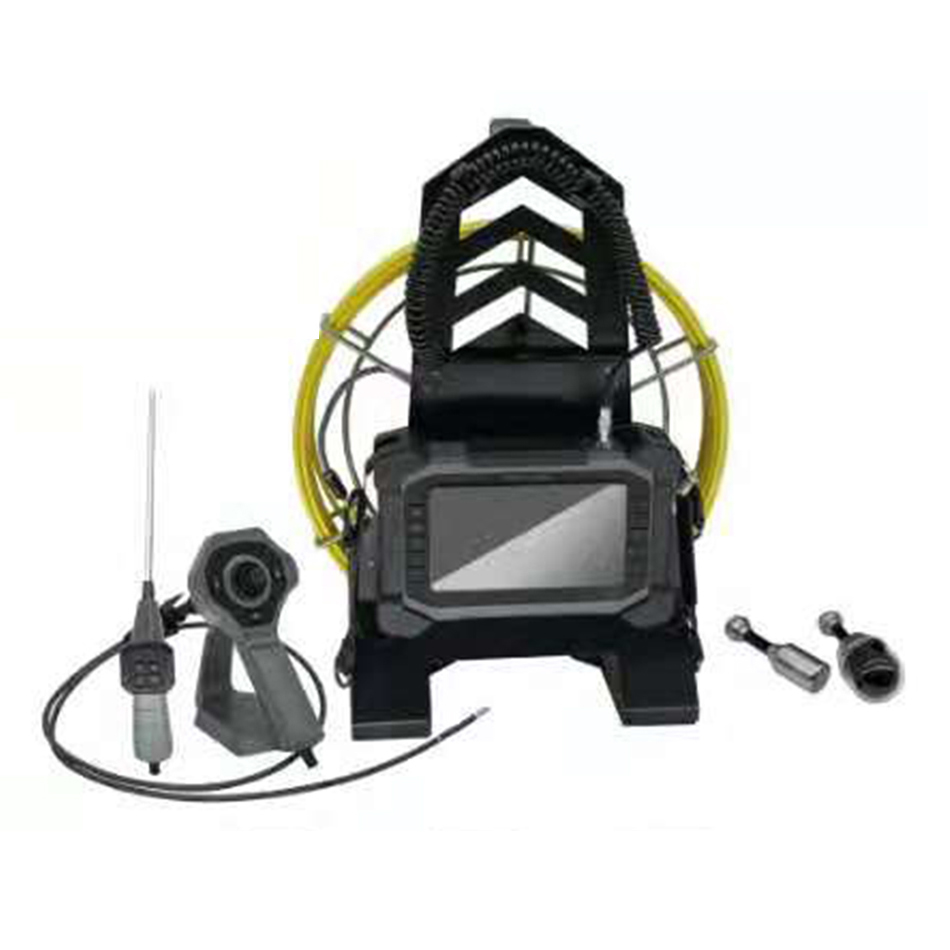

Functional characteristics

Innovative design concept, host compatible with pipeline mirror, electronic mirror, and straight rod mirror functions

7-inch LCD high-definition display screen with clear imaging

Integrated photo and video recording function to control lens rotation, focusing, storage and playback, etc

40mm lens, electric focusing, 360 rotation, 180 flipping, 1P67 waterproof, lens cover replaceable

24mm wide angle small lens with a field of view angle greater than 100 IP67 waterproof

8mm lens detection handle, combined with a 3m hose detection line, 360 degree guided bending

Independent portable cable tray with humanized cable rack structure design, easy to carry and place, and can hang the host

High flexibility detection line with both rigidity and flexibility, suitable for large space and long-distance detection

Equipped with a detachable battery that can be charged separately for real-time display of battery level, with a working time greater than 4 hours

Portable controller
New 7-inch LCD high-definition display widescreen camera and video recording with a one click design, with a light touch button to control the dimming, focusing, rotation, and flipping of the lens. Compatible with the functions of a borescope hose mirror and a hard rod mirror, it can be fixed and handheld for easy operation. It comes with a high-performance potassium battery that can work continuously for more than 4 hours at full charge. The battery pack can be replaced in a timely manner. The built-in 32GBSD memory card can record and detect images

Electronic mirror handle
Electronic mirror handle for one click operation of photography and recording, controlling the dimming and rotation of the lens

8mm lens joystick control, no less than 180% unilateral bending, 3m detection line, suitable for complex space detection

Straight rod mirror handle

Straight rod mirror handle for one click operation of photography and recording, with adjustable lens light source

6mm lens 25cm hard rod stainless steel insertion tube, suitable for high-frequency straight hole inspection

Technical Parameter
