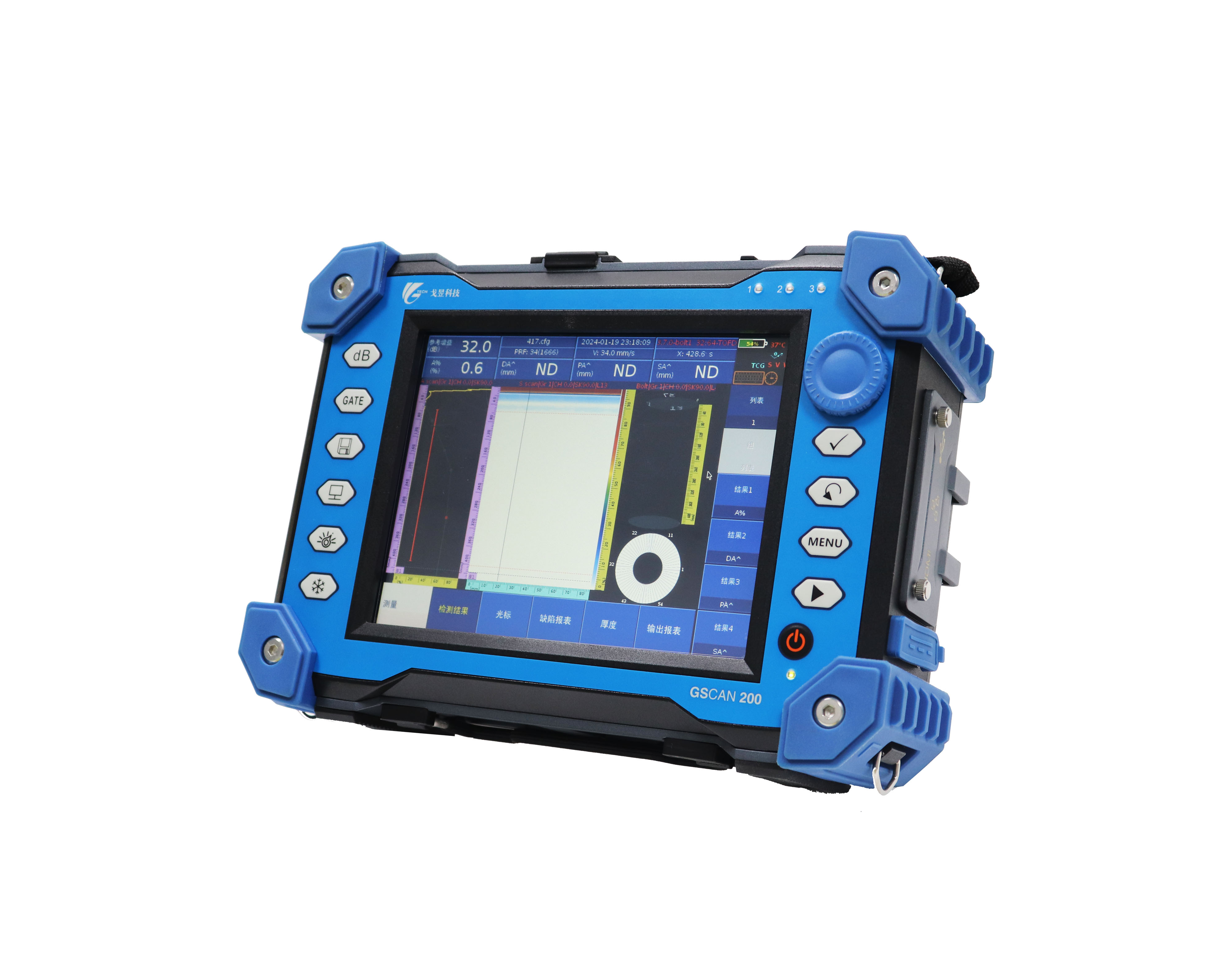

Gscan200 portable ultrasonic phased array bolt special detector
Functional characteristics
• 8.4 Color LCD touch screen
• Available in two models: 16/64 and 32/64
• Equipped with AutoCAD advanced workpiece contour graphics loading module
• Equipped with a dedicated bolt detection probe and conventional phased array detection function
• Multiple display modes such as A/B/S/C/TOFD/offline 3D
Technical Parameter
|
Parameter Options |
|
Phased array control channel |
Regular channel |
|
Configuration |
Receive/Transmit |
32/64 |
112 |
|
range |
9900ߎs |
9900ߎs |
|
|
sound velocity |
635-15240m/s |
|
|
|
Number of focusing rules |
1024 |
635-15240m/s |
|
|
pulsed generator |
detection mode |
PEIPC |
PE/PC/TT/TOFD |
|
Pulse voltage |
50V/1100V/1130V |
100V/1200V/1400V |
|
|
Pulse mode |
负方波 |
负方波 |
|
|
pulse width |
30-500ns |
30-500ns |
|
|
pulse rise time |
<8ns |
<8ns |
|
|
Pulse repetition rate PRF |
20KHz |
20KHz |
|
|
delay |
10ߎs/2.5ns |
10ߎs/2.5ns |
|
|
damping |
NA |
50Ω/500Ω |
|
|
receiver |
Gain range |
0-80dB |
0-110dB |
|
bandwidth |
0.5-15MHz |
0.5-15MHz |
|
|
Impedance |
500Ω |
500Ω |
|
|
Input capacitance |
60pF |
60pF |
|
|
Receive Delay |
10ߎs/2.5ns |
10ߎs/2.5ns |
|
|
Scan Ao Tracing and Display |
scan type |
Linear/sector scanning |
NA |
|
display mode |
A/B/C/S |
A/B TOFD |
|
|
Measurement unit |
mm /inch |
mm /inch |
|
|
DAC |
check the number |
16 |
|
|
TCG |
check the number |
16 |
|
|
Maximum gain |
40dB |
|
|
|
Maximum gain slope |
40dB/ߎs |
|
|
|
sluice gate |
threshold |
A/BII |
|
|
Gate value |
0-98% |
|
|
|
Gate trigger mode |
Peak/Frontier |
|
|
|
sluice gate |
|
Web Page Format |
|
|
Comprehensive data storage |
Pluggable memory |
USB drive/SD card |
|
|
monitor |
size |
8.4 inch |
|
|
resolution ratio |
800*600pixel |
|
|
|
types of |
TFT LCD Touch Screen |
|
|
|
I/0 interface |
UsB |
2 |
|
|
Ethernet |
10/100M |
|
|
|
Video output |
DVI-D |
|
|
|
encoder |
support |
|
|
|
language |
|
Chinese/English |
|
|
Battery and power supply |
DC supply voltage |
15V DC4A |
|
|
|
Type |
Carp battery |
|
|
|
Charging method |
Charging on the host allows for simultaneous operation of devices |
|
|
|
Continuous working hours |
3.5h |
|
|
housing |
size |
296mm*209mm*89mm |
|
|
weight |
3.5Kg (Including battery) |
|
