Functional characteristics

detection range

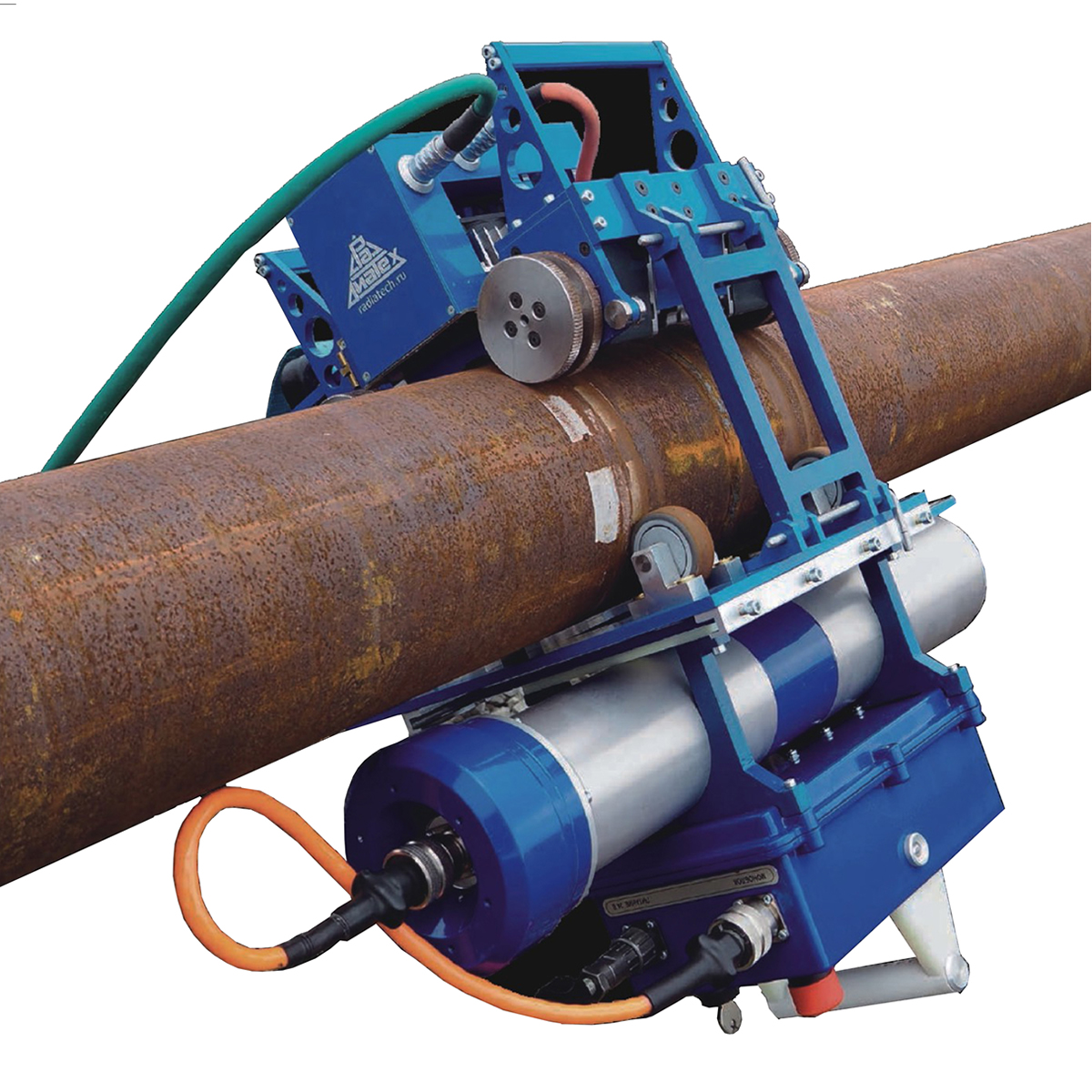

The fully automatic film free X-ray timely welding joint detection system is applicable to welding joints with different wall thicknesses, and the detection range is as follows:

• The elliptical method is suitable for small diameter pipes with a diameter of 10-108mm

• Double wall method is suitable for pipe diameters P114-530mm

• Single wall method is suitable for pipe diameters P530-1420mm

• Specific joints can be detected using the multiple exposure method, which can detect pipes of any diameter

note









FEATURES

• Real time X-ray inspection of welded joints

• The unique crawler can achieve hot surface detection

• Dustproof and waterproof grade can meet IP67 requirements

• Detection speed up to 1m/min

• Level 1 sensitivity level, image quality level in accordance with IS010893-7-B

• The magnetic force of the magnetic wheel can reach 60Kg/wheel, which can shorten the control time when multiple magnetic wheels are used to work simultaneously

• Magnetic crawling trolley can achieve automatic correction of trajectory motion

• The detector module can be extended to the console location

• The radiation safety distance is 40m, and the system is controlled by WiFi to achieve operational control at a maximum distance of 100m

• Any X-ray source below 250KV can be used in the system, and radioactive elements can also be used

• Built-in rechargeable carp battery, charging for 1 hour, continuous operation for 8 hours

• The detector module weighs 7kg and the power supply weighs 14kg

• High sensitivity detectors can be used in conjunction with X-ray tubes with lower tube voltage to measure defects up to 150um

• The resolution capability of dual phase IQIEN462-5 is 130um

• The operating temperature range is -4C to+45C
