Composite phased array ultrasonic C-scan detection scheme
1. Plan for detecting flat workpieces

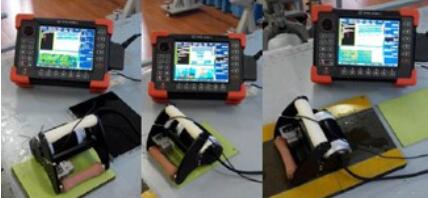

Option 1: The wheeled phased array probe and CTS-2108PA phased array detector form a complete set of phased array C-scan rapid imaging detection system. The phased array detector works in the A+L+C detection module, using water as the coupling agent during detection. The probe is gently rolled, and the C-scan image is immediately presented, making it particularly suitable for C-scan detection of large area planar composite materials.

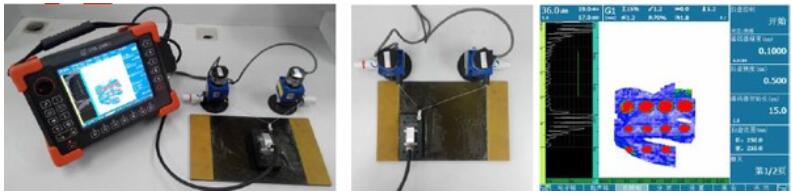

Option 2: A C-scan detection system is composed of a dual axis cable encoder, a high-resolution phased array probe, and a CTS-2108PA phased array detector (with a 2D-C scanning detection dedicated module). The cable encoder is fixed on the scanning workpiece during scanning, and magnetic or vacuum adsorption can be used to meet the requirements of different detection workpieces. When working, fix the wire clamps of the two cable encoders to the fixed positions of the scanning probe. The probe moves in any direction within the set detection range, making the scanning work as convenient as graffiti or painting. In addition to flat workpieces, it is also suitable for curved workpieces with small curvature.

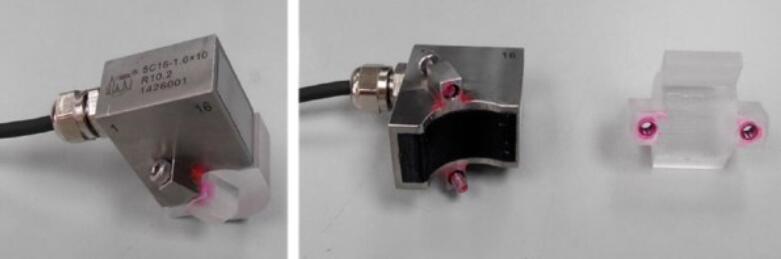

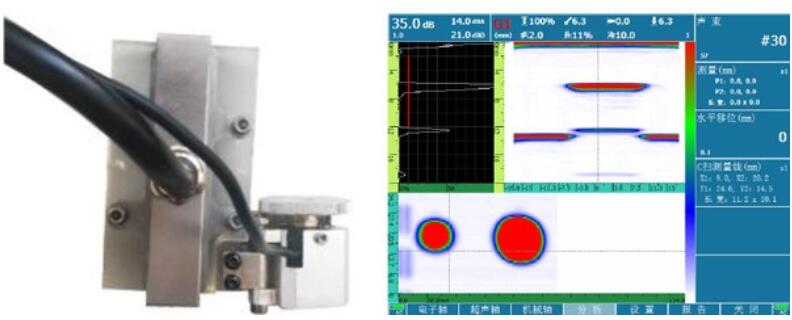

The use of our company's CTS-2108PA phased array detector, supporting company curved linear array probes, and specialized wedges can perfectly solve the problem of fillet C-scan detection.
